LC LED-300TB1D: 3mm Blue (120
Degree) LED Lamp
|
PRODUCT DESCRIPTION |
|
|
(1) RoHS Compliant
Part |
(4) Moisture &
UV Resistance Epoxy |
|
(2) Color Diffused
Len |
(5) Available in
white, blue, red, yellow and green |
|
(3) 120 Degree
Light Distribution |
|
Absolute Maximum Rating
(Ta = 250C)
|
PARAMETER |
MAXIMUM RATING |
UNITS |
|
DC Forward Current |
30 |
mA |
|
Reverse Voltage (IR
= 100mA) |
5 |
V |
|
Peak Pulse Forward Current (1) |
100 |
mA |
|
Avg. Forward Current (Pulse Operation) |
30 |
mA |
|
Operating Temperature |
-40
to +100 |
0C |
|
Storage Temperature |
-40
to +100 |
0C |
(1) 1/10 duty cycle and for long operating life
max. of 20mA recommended
Electro-optical
Characteristics (Ta = 250C)
|
PARAMETER |
SYMBOL |
CONDITIONS |
MIN. |
TYP. |
MAX. |
UNIT |
|
Forward Voltage |
VF |
IF
= 20mA |
3.0 |
|
3.5 |
V |
|
Reverse Voltage |
VR |
IR
= 100mA |
|
|
5 |
V |
|
Dominant Wavelength |
lD |
IF
= 20mA |
465 |
nm |
||
|
Viewing Angle |
2q1/2 |
IF
= 20mA |
|
120 |
|
Deg. |
|
Luminous Intensity |
IV |
IF
= 20mA |
2,000 |
4,000 |
mcd |

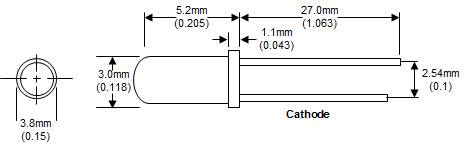

DEVICE
DRAWING
|
LC LED Corporation |
